Touch Screen HMI Displays | Custom Industrial Application

Specifications:

Solutions to Unresponsive Touch Caused by Surface Water Film & Condensation
1.The cover glass, touch ITO layer and LCD screen are seamlessly bonded with low-moisture-absorption OCA optical adhesive, completely eliminating air gaps. With no space for water vapor accumulation, internal fogging, white spots and permanent watermarks on the display are fully prevented.

2.The selected OCA is industrial adhesive featuring low water absorption and hydrolysis resistance. It will not turn white or precipitate corrosive substances under high humidity and thermal cycling conditions. It isolates water vapor from direct contact with ITO circuits, preventing circuit corrosion and short circuits caused by moisture exposure.

3.Full degassing treatment is carried out under high temperature and high pressure during production, eliminating tiny air bubbles that trap moisture and thereby preventing local corrosion and abnormal touch performance.

4.A moisture-proof passivation protective layer is added to the ITO film to isolate erosion from water vapor and acid-base mist in workshop environments. It enhances the hydrolysis resistance and oxidation resistance of circuits, and reduces the failure rate of short circuits.

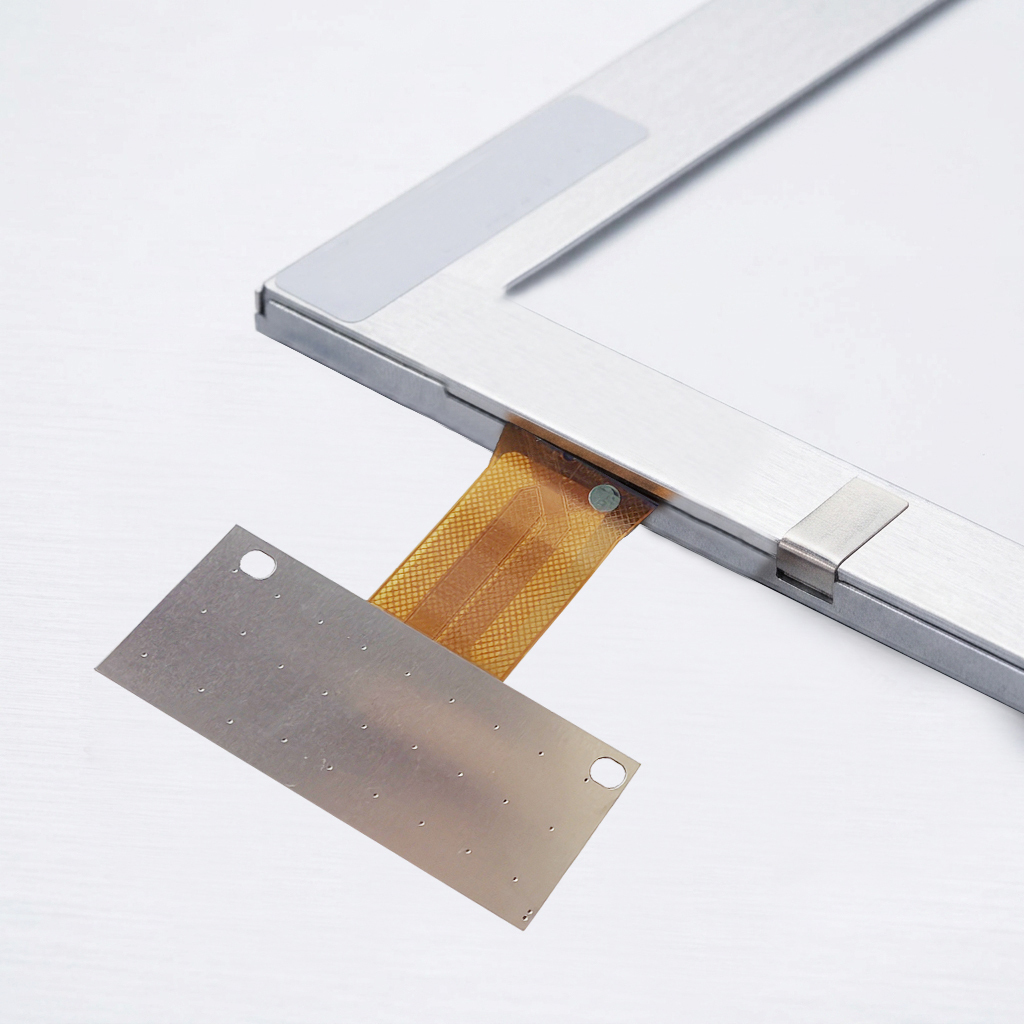

5.The FPC touch flexible cables are treated with waterproof encapsulant, and waterproof sealing rings are installed at connectors to prevent water vapor intrusion from the wiring side and subsequent electrode corrosion.

6.The screen bezel is continuously filled with high and low temperature resistant waterproof silicone sealant without gaps or discontinuous glue lines, blocking flushing water, mist and condensed water vapor from seeping into the module interlayer.

7.The cover glass surface is coated with a highly dense long-lasting AF hydrophobic anti-fouling coating. Condensed dew beads rapidly coalesce into water droplets and slide off, preventing the formation of a continuous conductive water film and fundamentally reducing interference of water film on the touch electric field. Meanwhile, the coating resists corrosion from food-grade acids, alkalis, cleaning agents and water treatment chemicals.

Solutions to Touch Drift and Unstable Multi-Touch Performance
1.Eliminate low refresh rate touch solutions below or equal to 100 Hz. All units adopt high-speed industrial touch main controllers ranging from 200 Hz to 400 Hz, which drastically shorten coordinate scanning cycles. This delivers lag-free tapping and smooth continuous sliding without stuttering, perfectly matching millisecond-level command interaction requirements of PLC systems.

2.ICs supporting multi-channel synchronous acquisition are selected, with stable 10-point or higher multi-touch as standard configuration. Optimized electrode scanning timing ensures no point loss or touch interruption when adjusting parameters or zooming the screen with both hands simultaneously.

3.The touch driver board adopts independent power supply, which is electrically isolated from power sources of inverters and servo motors to prevent sampling accuracy degradation caused by interference from power circuits.

4.High-conductivity and low-impedance ITO sensing circuits are adopted to reduce signal transmission loss and minimize electrode signal fluctuations under vibrating working conditions. A shielding copper foil layer is added to the FPC flexible cables with reliable grounding at both ends to resist EMI interference from robot servos and contactors.

5.The cover glass and touch layer are tightly bonded by fully laminated OCA optical adhesive, eliminating signal jumps induced by vibration in air gaps. Equipped with silicone shock-absorbing bezels, the module absorbs continuous equipment vibration and reduces coordinate loss caused by relative displacement of electrodes.

6.The long-acting hydrophobic AF coating on the surface of the cover glass inhibits the formation of continuous conductive water films, physically cutting down large-area clutter signal input.

7.An adaptive dynamic threshold algorithm is integrated to identify tiny electrode capacitance fluctuations caused by vibration and filter irregular minor coordinate jumps, preventing accidental false tap recognition under continuous equipment shaking.

8.It is equipped with identification logic for large-area conductive media, which distinguishes narrow-range signals from human fingers and wide-range interference signals generated by accumulated water. When a water film forms on the surface, full-area false triggers are suppressed, and only valid touch areas of fingers are recognized.

FAQ
1.Q: Why does touch drift and unstable multi-touch often occur on industrial touch screens?
A: Common causes include condensation water film, EMI interference from servo/inverter power supplies, vibration-induced electrode displacement, low touch refresh rate, and high hygroscopic adhesive trapping moisture between layers. Our G+G fully laminated structure, high-speed touch IC and multi-layer anti-interference design solve all these root issues.

2.Q: Can this touch module work stably in high-humidity environments with water splashes and condensation?
A: Yes. It features long-lasting hydrophobic AF coating, low water-absorption OCA, passivation-protected ITO layers, fully sealed bezels and waterproof encapsulated FPC cables, which stop water vapor infiltration and eliminate conductive water film interference.

3.Q: How does the product guarantee stable touch performance under strong vibration from industrial equipment?
A: Multiple anti-vibration designs are applied: bubble-free full lamination removes air-gap signal jumps, silicone shock-absorbing frames absorb mechanical vibration, low-impedance ITO reduces signal fluctuation, and dynamic threshold algorithm filters vibration-triggered false touch points.

4.Q: Is multi-touch reliable when connected with PLC and surrounded by servo motors and inverters?
A: Absolutely. The touch driver board uses isolated independent power supply, shielded grounded FPC, 200–400 Hz high-speed industrial touch chip and multi-channel synchronous acquisition IC. These designs effectively block EMI noise and support stable 10+ point multi-touch without point loss.

5.Q: What technology prevents false touch triggers when a continuous water film covers the screen surface?
A: Two core solutions: The dense AF coating breaks continuous conductive water films into sliding droplets physically; built-in large-area conductive medium identification logic differentiates wide-range water interference from narrow finger signals to block full-screen false triggering.
